PRODUCTS · HOCHIKI EUROPE

Hochiki Europe addressable fire alarm

L@titude and HFP control panels with Hochiki’s ESP analogue addressable sensors, call points, sounders and interface modules — supplied, installed, programmed and maintained by our engineers in Qatar.

AT A GLANCE
Brand
Hochiki Europe
Protocol
ESP analogue addressable
Panels
L@titude 2–16 loop and HFP 1–2 loop
Approvals
EN 54 · LPCB approved, HFP panel BSI Kitemark
Support
Supply, installation and programming
CONTROL PANELS

L@titude and HFP control panels

Analogue addressable fire alarm control panels and the plug-in cards, network modules and repeaters that go with them.

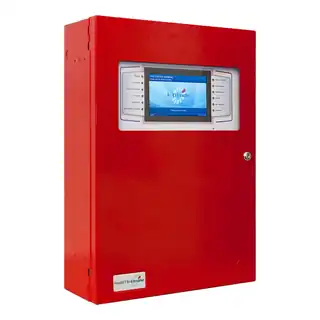

Hochiki L@titude 2-16 L@titude 2–16 Loop Control Panel
L@titude 2-16LPCBEN 54-2/4/13
L@titude 2–16 Loop Control Panel
  • 2 to 16 addressable loops, 500 mA loop current
  • 4 sounder circuits at 2.5 A, 5.25 A or 10.25 A power supply
  • Over 4,000 sub-address points; networks up to 32 panels
Ask for price →

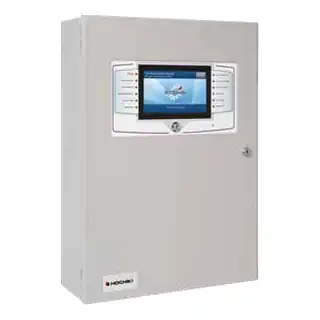

Hochiki L@titude 2-8 L@titude 2–8 Loop Control Panel
L@titude 2-8LPCBEN 54-2/4
L@titude 2–8 Loop Control Panel
  • 2 to 8 addressable loops, 500 mA loop current
  • 4 sounder circuits, 3 programmable inputs and 5 relay outputs
  • Up to 512 extra I/O via plug-in cards; USB configuration
Ask for price →

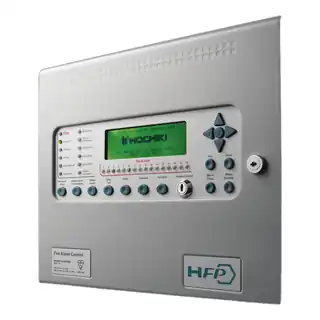

Hochiki HFP AP-AS HFP 1–2 Loop Addressable Panel
HFP AP-ASBSI KitemarkEN 54-2/4
HFP 1–2 Loop Addressable Panel
  • Single or two-loop panel with 16 zonal LEDs and graphic display
  • 2 sounder circuits, 5 inputs, 3 relays and 3 A power supply
  • Stores the last 500 events; single-loop HFP AP-ASL version
Ask for price →

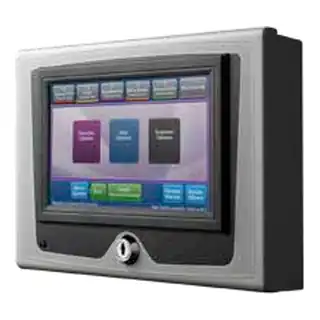

Hochiki L@titude Repeater L@titude Touch-Screen Repeater
L@titude RepeaterLPCB
L@titude Touch-Screen Repeater
  • 7-inch full-colour 800 × 480 touch-screen display
  • Full display and optional control of the L@titude panel
  • 24 programmable buttons; 24 VDC, RS485 network connection
Ask for price →

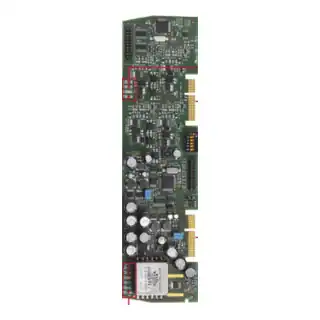

Hochiki K758 L@titude 2-Loop Driver Card
K758LPCB
L@titude 2-Loop Driver Card
  • Adds two addressable loops to a L@titude panel
  • Up to 4 cards in 2–8 loop panels, up to 8 in 2–16 loop panels
  • Plug-and-play fitting with built-in redundancy
Ask for price →

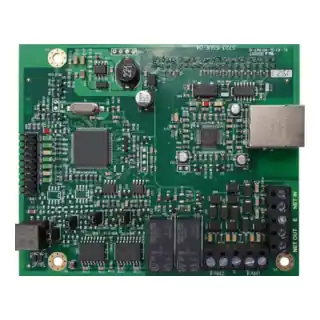

Hochiki K2008 L@titude Network Module
K2008LPCB
L@titude Network Module
  • Full-duplex RS485 networking for L@titude panels and repeaters
  • Up to 127 panels on one network
  • Partially or fully isolated versions; on-board diagnostic LEDs
Ask for price →

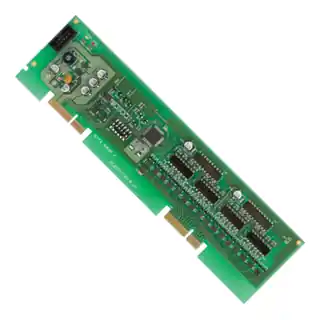

Hochiki K794 L@titude Media Gateway Card
K794LPCB
L@titude Media Gateway Card
  • Links the L@titude panel to Lati-View graphics software
  • Interface for third-party IP networks via an RJ45 port
  • Plug-in card, configured with Loop Explorer 2
Ask for price →
DETECTORS

ESP analogue addressable sensors

Smoke, heat, multi-sensor and CO detectors on Hochiki’s ESP protocol, with twin LEDs for 360° indication.

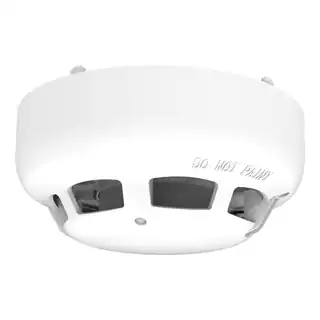

Hochiki ALN-EN(SCI) Analogue Photoelectric Smoke Sensor
ALN-EN(SCI)LPCBVdS
Analogue Photoelectric Smoke Sensor
  • High-performance removable optical chamber
  • Twin LEDs for 360° viewing; integral short-circuit isolator
  • Variable sensitivity set from the panel
Ask for price →

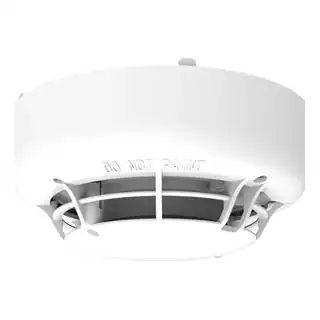

Hochiki ALN-E(HFP) Photoelectric Smoke Sensor for HFP
ALN-E(HFP)LPCBVdS
Photoelectric Smoke Sensor for HFP
  • For HFP analogue addressable panels
  • High-performance removable chamber, locks to the base
  • Variable sensitivity; SIL 2 variants available
Ask for price →

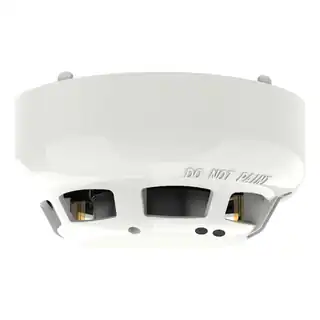

Hochiki ATJ-EN Analogue Multi-Heat Sensor
ATJ-ENLPCBVdS
Analogue Multi-Heat Sensor
  • Fixed-temperature and rate-of-rise heat elements
  • User-selectable modes, classes A1, B and C
  • Twin LEDs for 360° viewing; SIL 2 variants available
Ask for price →

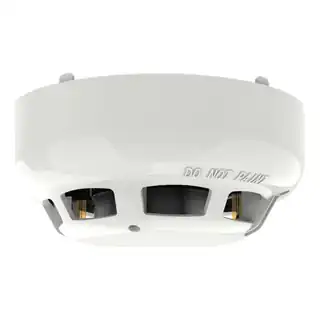

Hochiki ACC-EN Analogue Optical/Heat Multi-Sensor
ACC-ENLPCBVdS
Analogue Optical/Heat Multi-Sensor
  • Optical smoke chamber and heat element in one head
  • User-selectable modes, classes A1 and C
  • White or black versions; SIL 2 variants available
Ask for price →

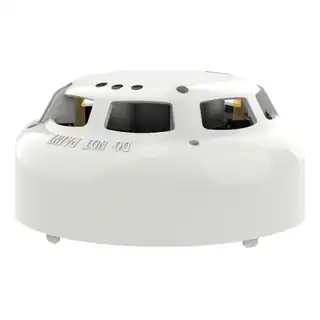

Hochiki ACD-EN Multi-Sensor with CO Detection
ACD-ENLPCBEN 54-29/30/31
Multi-Sensor with CO Detection
  • Smoke, heat and CO sensing in one low-profile head
  • 24 EN-approved modes, including a CO alarm (COHb) facility
  • 10-year CO sensor life
Ask for price →
BASES

Sensor mounting bases

Standard and short-circuit isolator bases for the ESP and HFP sensor ranges.

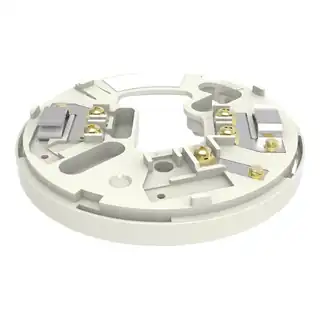

Hochiki YBN-R/3 Common Mounting Base
YBN-R/3LPCB
Common Mounting Base
  • Electronics-free base for ESP sensors
  • Stainless steel contacts, takes 2.5 mm² cables
  • Slim 8 mm profile with remote indicator output
Ask for price →

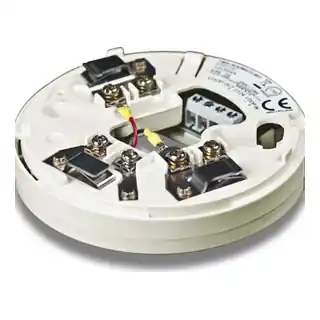

Hochiki YBN-R/3(SCI) Short-Circuit Isolator Base
YBN-R/3(SCI)LPCB
Short-Circuit Isolator Base
  • Integral short-circuit isolator, no loop address needed
  • Fits the ESP range of sensors
  • Slim profile; SIL 2 variant available
Ask for price →

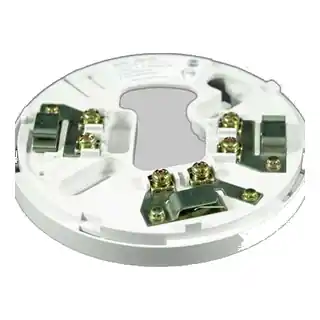

Hochiki YBN-R/3(HFP) Common Mounting Base for HFP
YBN-R/3(HFP)LPCB
Common Mounting Base for HFP
  • For HFP analogue addressable sensors
  • Stainless steel contacts, takes 2.5 mm² cables
  • Slim 8 mm profile with remote indicator output
Ask for price →
CALL POINTS

Addressable manual call points

Resettable call points with a built-in short-circuit isolator, for indoor and outdoor use.

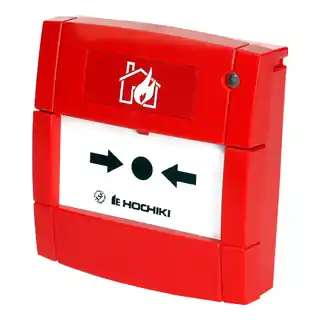

Hochiki HCP-E(SCI) Addressable Manual Call Point
HCP-E(SCI)LPCB
Addressable Manual Call Point
  • Integral short-circuit isolator and bi-colour status LED
  • Non-frangible resettable element to EN 54
  • Flush or surface mounting (separate back box)
Ask for price →

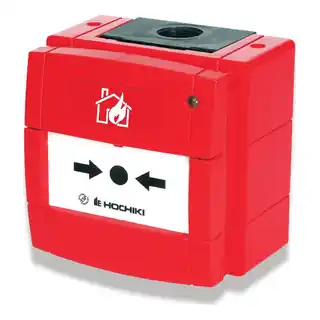

Hochiki HCP-W(SCI) Weatherproof Manual Call Point
HCP-W(SCI)LPCB
Weatherproof Manual Call Point
  • IP67 rated for outdoor and wet areas
  • Integral short-circuit isolator and bi-colour status LED
  • Surface mounted; SIL 2 variants available
Ask for price →
SOUNDERS & BEACONS

Loop-powered sounders and beacons

Addressable wall and base sounders with 51 selectable tones, beacons rated to EN 54-23, and a weatherproof kit.

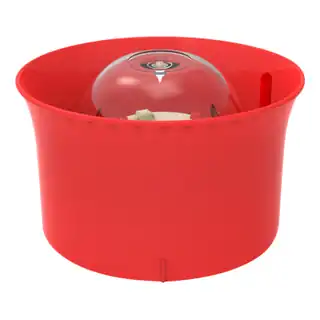

Hochiki CHQ-WSB2 Addressable Wall Sounder Beacon
CHQ-WSB2LPCBEN 54-3EN 54-23
Addressable Wall Sounder Beacon
  • 51 selectable tones, 90 to 102 dB(A) at 1 m
  • High-intensity LED beacon, 0.5 or 1 Hz flash
  • Red or white case; weatherproof kit available
Ask for price →

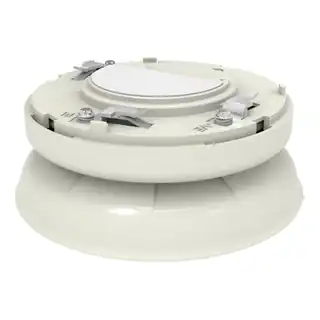

Hochiki YBO-BS Addressable Base Sounder
YBO-BSLPCBVdS
Addressable Base Sounder
  • Fits under a standard or isolator base and sensor
  • 51 selectable tones, 50 to 98 dB(A) at 1 m
  • Auto-shutdown; ivory, white or black versions
Ask for price →
Hochiki YBO-BSB2 Addressable Base Sounder Beacon
YBO-BSB2LPCBEN 54-3EN 54-23
Addressable Base Sounder Beacon
  • Sounder and beacon can operate independently
  • 51 tones, 50 to 98 dB(A); red or white LEDs
  • Ivory, white or black case; SIL 2 variant available
Ask for price →

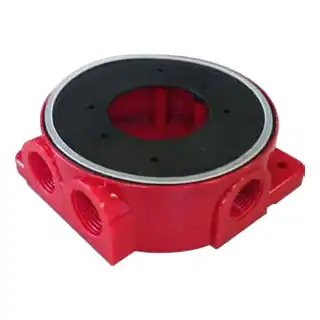

Hochiki CHQ-WPK Sounder Weatherproofing Kit
CHQ-WPKLPCB
Sounder Weatherproofing Kit
  • Weatherproof back box and gasket for CHQ-WS2 and CHQ-WSB2
  • Raises the device to IP65 for external use
  • Red or white ABS
Ask for price →
MODULES

Input, output and interface modules

Smart-Fix loop modules to monitor contacts, switch relays, drive sounders and connect conventional or third-party equipment.

Hochiki CHQ-DIM2(SCI) Dual Input Module
CHQ-DIM2(SCI)LPCB
Dual Input Module
  • Two inputs for volt-free contacts on one loop address
  • Each input set as normally open or normally closed
  • Integral isolator; DIN-rail version available
Ask for price →

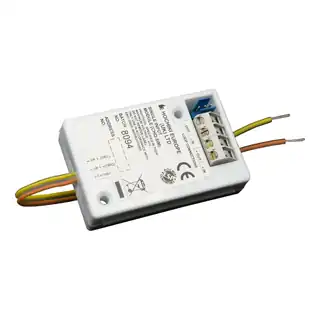

Hochiki CHQ-SIM Single Input Module
CHQ-SIMLPCBVdS
Single Input Module
  • Compact module for one monitored input
  • Flying leads for quick installation
  • Addressed with the TCH-B200 hand-held programmer
Ask for price →

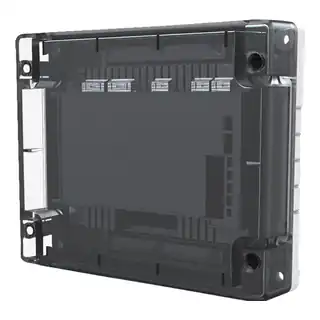

Hochiki CHQ-DRC2(SCI) Dual Relay Controller
CHQ-DRC2(SCI)LPCB
Dual Relay Controller
  • Two independent changeover relays, 30 VDC at 1 A
  • Auxiliary monitored input, loop powered
  • Integral isolator; DIN-rail version; SIL 2 approved
Ask for price →

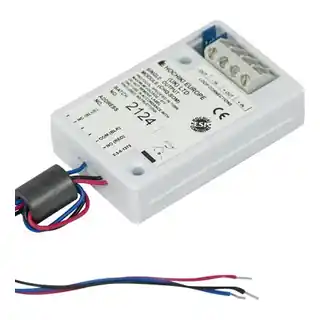

Hochiki CHQ-SOM Single Output Module
CHQ-SOMLPCB
Single Output Module
  • One volt-free relay output, N/O or N/C, 30 VDC at 1 A
  • Compact design with colour-coded flying leads
  • Addressed with the TCH-B100 hand-held programmer
Ask for price →

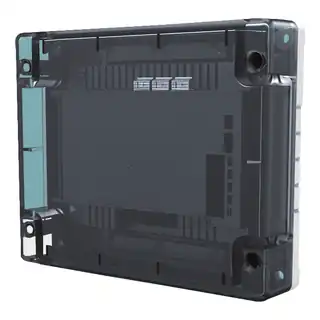

Hochiki CHQ-MRC2(SCI) Mains Relay Controller
CHQ-MRC2(SCI)LPCB
Mains Relay Controller
  • Single mains-rated relay, 250 VAC 5 A or 48 VDC 2 A
  • Auxiliary monitored input, loop powered
  • Integral isolator; DIN-rail version available
Ask for price →
Hochiki CHQ-MRC2/FS(SCI) Fail-Safe Mains Relay Controller
CHQ-MRC2/FS(SCI)LPCB
Fail-Safe Mains Relay Controller
  • Fail-safe relay control for door holders, dampers and plant
  • 250 VAC 5 A or 48 VDC 2 A relay with monitored input
  • Integral isolator; DIN-rail version available
Ask for price →
Hochiki CHQ-PCM(SCI) Plant Control Module
CHQ-PCM(SCI)LPCB
Plant Control Module
  • 4 changeover relay outputs and 4 monitored inputs
  • Loop powered on a single loop address
  • Integral isolator; SIL 2 and railway-approved variants
Ask for price →

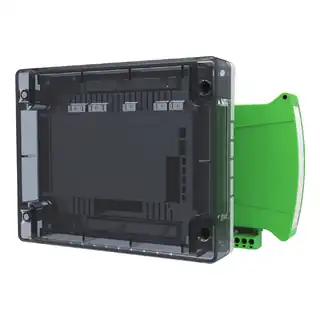

Hochiki CHQ-DSC2(SCI) Dual Sounder Controller
CHQ-DSC2(SCI)LPCB
Dual Sounder Controller
  • Two monitored sounder circuits, each fused at 1 A
  • Continuous or synchronised pulsed sounder drive
  • Auxiliary monitored input; integral isolator
Ask for price →
Hochiki CHQ-DZM(SCI) Dual Zone Monitor
CHQ-DZM(SCI)LPCB
Dual Zone Monitor
  • Connects two conventional zones, up to 30 detectors each
  • Both zones monitored for open and short circuit
  • Needs a 24 VDC auxiliary supply; marine and SIL 2 variants
Ask for price →

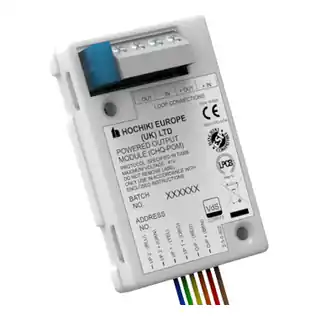

Hochiki CHQ-POM Powered Output Module
CHQ-POMLPCB
Powered Output Module
  • 24 VDC output, selectable 2 to 32 mA in 2 mA steps
  • Two monitored inputs
  • Compact unit to bring third-party devices onto the ESP loop
Ask for price →

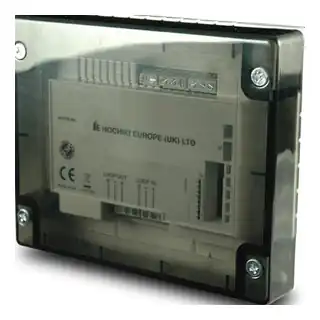

Hochiki CHQ-ISM Intrinsically Safe Sounder Interface
CHQ-ISMLPCB
Intrinsically Safe Sounder Interface
  • Connects the loop to intrinsically safe sounders and beacons
  • Fully monitored circuits; needs an I.S. barrier and 24 VDC
  • DIN version; SIL 2 variants available
Ask for price →
ALSO FROM FIRE CLOUD

More products and support

Hochiki Ekho wireless
Wireless detectors, call points, sounders and modules that join your addressable loop without cabling.
View wireless range →
Other brands & spare parts
Honeywell, Notifier, Hochiki, Simplex, EST3, Gamewell-FCI and more — send us your device list for pricing.
Send device list →
Panel programming
On-site and remote programming of any fire alarm control panel, including Hochiki, TANDA TX7 and ASENWARE.
View service →

Looking for other products? See Hochiki America, TANDA TX7, ASENWARE or Emergency & Exit Lights →
