PRODUCTS · ASENWARE

ASENWARE conventional fire alarm system

ASENWARE AW-CFP2166 conventional fire alarm panels from 2 to 32 zones, with matching smoke, heat and beam detectors, call points, sounders and standalone alarms — supplied, installed and commissioned by our engineers.

ASENWARE AT A GLANCE
System
Conventional, two-wire zones
Panels
AW-CFP2166, 2 to 32 zones
Devices
Up to 20 per zone
Approvals
EN 54 · LPCB and TÜV Rheinland-approved models
Support
Supply, installation and commissioning
CONTROL PANELS

Conventional fire alarm control panels

ASENWARE AW-CFP2166 series panels from 2 to 32 zones, built to EN 54-2 and EN 54-4, with two sounder circuits, two relay outputs and battery back-up.

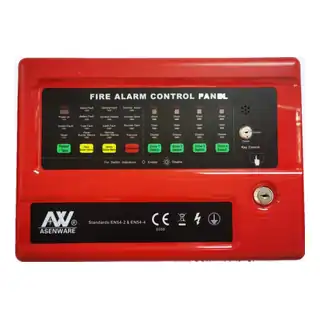

ASENWARE AW-CFP2166-2/4 Conventional Fire Alarm Panel, 2 to 4 Zones
AW-CFP2166-2/4EN 54-2/4LPCB (4-zone)TÜV Rheinland (2-zone)
Conventional Fire Alarm Panel, 2 to 4 Zones
  • 2 or 4 zones, up to 20 devices per zone
  • 2 sounder circuits (2 × 300 mA), fire and fault relays
  • 220 VAC with 2 × 12 V 2.3 Ah battery back-up
Ask for price →

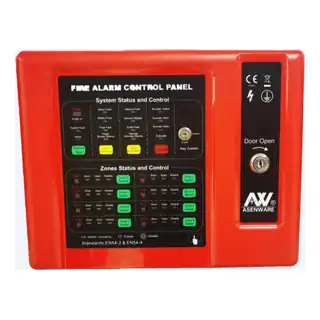

ASENWARE AW-CFP2166-6/8 Conventional Fire Alarm Panel, 6 to 8 Zones
AW-CFP2166-6/8EN 54-2/4LPCB (8-zone)
Conventional Fire Alarm Panel, 6 to 8 Zones
  • 6 or 8 zones, up to 20 devices per zone
  • 2 sounder circuits (2 × 400 mA), 2 relay outputs
  • GSM extension option, metal box version available
Ask for price →

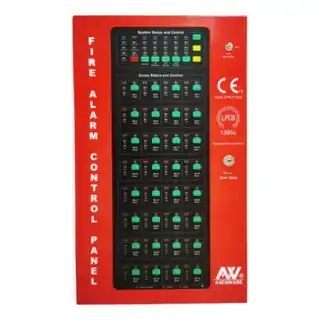

ASENWARE AW-CFP2166-12/32 Conventional Fire Alarm Panel, 12 to 32 Zones
AW-CFP2166-12/32EN 54-2/4LPCB
Conventional Fire Alarm Panel, 12 to 32 Zones
  • 12, 16, 20, 24, 28 or 32 zones
  • Up to 16 devices per zone, including call points
  • 2 sounder circuits (2 × 600 mA), 2 relay outputs
Ask for price →
DETECTORS

Conventional smoke, heat and multi-sensor detectors

Two-wire zone detectors for the AW-CFP2166 panels. The detector that raised the alarm keeps its red LED on until the panel is reset.

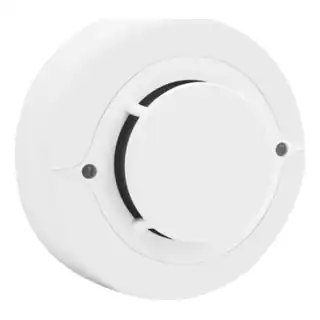

ASENWARE AW-CSD381 Conventional Optical Smoke Detector
AW-CSD381EN 54-7LPCB
Conventional Optical Smoke Detector
  • Photo-electronic sensing chamber, 9 to 28 VDC
  • Low standby current, ≤120 µA
  • Latching red alarm LED, reset from the panel
Ask for price →

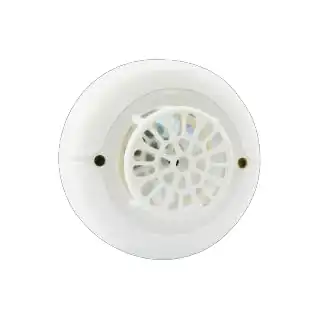

ASENWARE AW-CTD382 Conventional Heat Detector
AW-CTD382EN 54-5LPCB
Conventional Heat Detector
  • Fixed 57 °C plus rate-of-rise, class A2R
  • Two-wire zone connection, 9 to 28 VDC
  • Latching red alarm LED, reset from the panel
Ask for price →

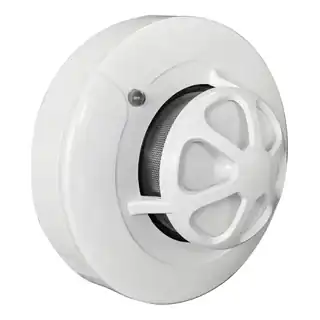

ASENWARE AW-D138C Conventional Combined Smoke & Heat Detector
AW-D138CEN 54-5/7TÜV Rheinland
Conventional Combined Smoke & Heat Detector
  • Optical smoke plus 57 °C fixed heat (A2R)
  • Dual LEDs for 360° alarm indication
  • Two-wire zone connection, 9 to 28 VDC
Ask for price →
BEAM DETECTORS

Reflective optical beam smoke detectors

For high ceilings and large open areas such as warehouses, malls, exhibition halls, hotel lobbies and atriums.

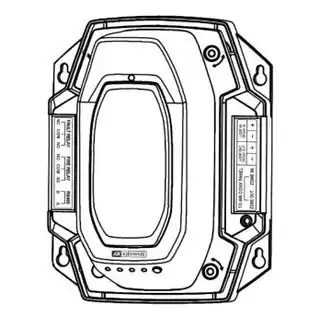

ASENWARE AW-D130A/C Reflective Optical Beam Smoke Detector
AW-D130A/CEN 54-12TÜV Rheinland
Reflective Optical Beam Smoke Detector
  • Range 5 to 160 m with telescope-style optics
  • Laser alignment, auto calibration, infrared remote
  • Addressable (D130A) and conventional (D130C) versions
Ask for price →
MANUAL CALL POINTS

Conventional manual call points

Red manual call points for the AW-CFP2166 series panels.

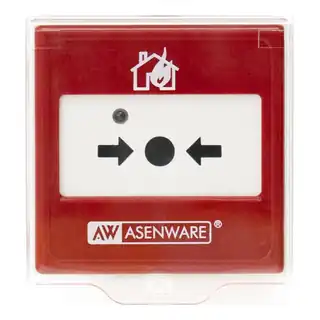

ASENWARE AW-D135C Conventional Manual Call Point
AW-D135CEN 54-11LPCB
Conventional Manual Call Point
  • For AW-CFP2166 conventional panels
  • Red LED blinks in normal state, steady on alarm
  • 16 to 24 VDC, surface mounting
Ask for price →
SOUNDERS & BEACONS

Conventional sounders, strobes and beacons

Audible and visual alarm devices for indoor, outdoor and wet areas.

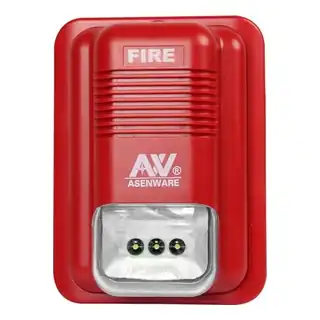

ASENWARE AW-CSS2166-2 LED Conventional Strobe Sounder
AW-CSS2166-2EN 54-3/23TÜV Rheinland
LED Conventional Strobe Sounder
  • ≥100 dB at 1 m with 3 selectable tones
  • LED strobe, flash period ≤1 s
  • 12 to 24 VDC, ≤50 mA, for indoor use
Ask for price →

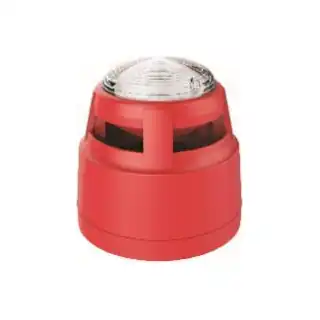

ASENWARE AW-D316 Conventional Sounder Beacon
AW-D316EN 54-3/23LPCB
Conventional Sounder Beacon
  • White flash, EN 54-23 coverage C-3-8 / W-2.4-6
  • 24 VDC, ≤100 mA, ceiling or wall mounting
  • Flame-retardant PC/ABS housing, IP21C
Ask for price →

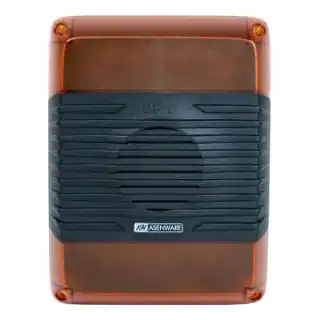

ASENWARE AW-D106C Waterproof Strobe Sounder
AW-D106CEN 54-3IP65TÜV Rheinland
Waterproof Strobe Sounder
  • IP65 for outdoor and wet areas, ≥105 dB at 1 m
  • 85 to 264 VAC or 10 to 28 VDC supply
  • Optional silence button, 10-minute mute
Ask for price →

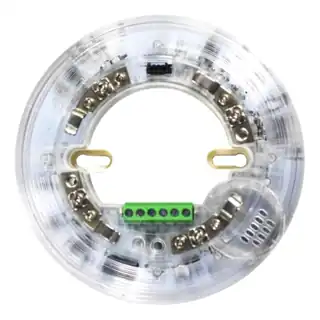

ASENWARE AW-D120B Conventional Sounder Base
AW-D120BEN 54-3/13TÜV Rheinland
Conventional Sounder Base
  • Fits under conventional detectors, ≥85 dB at 3 m
  • Activated only by the detector it carries
  • Four-wire connection, 20 to 28 VDC
Ask for price →
STANDALONE ALARMS

Standalone battery smoke, heat and CO alarms

Self-contained alarms for villas, apartments, majlis and staff accommodation, with no wiring needed.

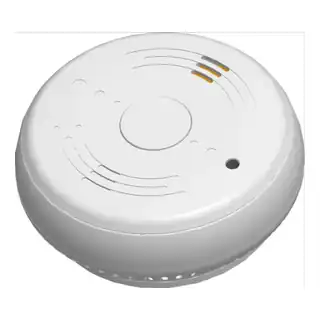

ASENWARE AW-D611 Standalone Smoke Alarm
AW-D611EN 14604TÜV Rheinland
Standalone Smoke Alarm
  • Optical sensing chamber, 9 V battery
  • ≥85 dB at 3 m, test and hush button
  • Low-battery warning
Ask for price →
ASENWARE AW-D615 10-Year Battery Smoke Alarm
AW-D615EN 14604TÜV Rheinland
10-Year Battery Smoke Alarm
  • Sealed 10-year CR123 lithium battery
  • Optical chamber, ≥85 dB at 3 m
  • 360° red LED, test and hush button
Ask for price →

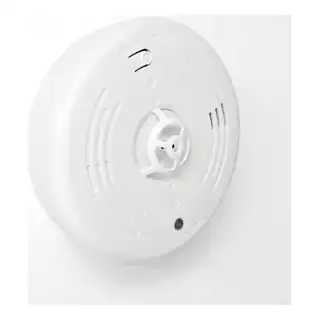

ASENWARE AW-D612 Standalone Heat Alarm
AW-D612BS 5446-2TÜV Rheinland
Standalone Heat Alarm
  • 57 °C fixed plus rate-of-rise detection
  • 9 V battery, ≥85 dB at 3 m
  • Suits kitchens where smoke alarms false alarm
Ask for price →

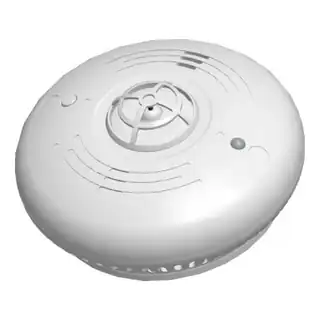

ASENWARE AW-D616 10-Year Battery Heat Alarm
AW-D616BS 5446-2TÜV Rheinland
10-Year Battery Heat Alarm
  • 57 °C fixed plus rate-of-rise detection
  • Sealed 10-year CR123 lithium battery
  • ≥85 dB at 3 m with 360° LED
Ask for price →

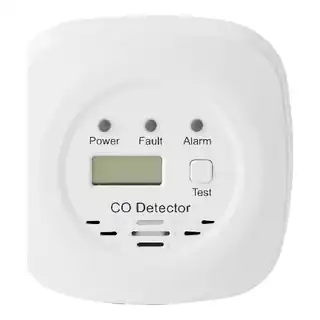

ASENWARE AW-D125S Standalone Carbon Monoxide Alarm
AW-D125SEN 50291-1TÜV Rheinland
Standalone Carbon Monoxide Alarm
  • 0 to 999 ppm with LCD display
  • Built-in 3 V battery with low-battery warning
  • 10-year sensor life
Ask for price →
